Interchangeable heads

Interchangeable Heads & Accessories

Interchangeable inserts turn one torque wrench into many tools. Every insert below is listed with its interface — Ø16 mm or Ø22 mm spigot, or 9×12 mm / 14×18 mm female insert — so you can match it to your DG®-II or mechanical wrench. Use the filter to show only the interface you need.

342 items18 types

Open ring (flare nut) insert for torque wrench

Show interface:

Driver Square Adapter (Classic Mechanical)

7 items

Item no.	Drive	Fits model
32060481	1/4"	12140014
32060482	3/8"	12140013; 12140012
32060483	3/8"	12140011
32060484	1/2"	12140010
32060485	1/2"	12140006; 12140007; 12140008
32060440	3/4"	12140015; 12140016
32060486	1"	12140017

Round Shape Ratchet Head Insert

15 items · 14x18mm, 9x12mm, Ø16mm, Ø22mm

Item no.	Interface	Size	Drive	Teeth	Weight (g)
32060438	Ø16mm	—	1/4"	72 teeth	240
32060255	Ø16mm	—	3/8"	72 teeth	240
32060256	Ø16mm	—	1/2"	72 teeth	260
32060437	Ø22mm	—	3/4"	72 teeth	1200
32060020	9x12mm	1/4"	—	52 teeth	69
32060019	9x12mm	3/8"	—	52 teeth	143
32060085	9x12mm	1/2"	—	52 teeth	154
32060110	14x18mm	3/8"	—	52 teeth	289
32060021	14x18mm	1/2"	—	52 teeth	300
32060022	14x18mm	3/4"	—	52 teeth	338
32060544	9x12mm	1/4"	—	72 teeth	76
32060545	9x12mm	3/8"	—	72 teeth	159
32060546	9x12mm	1/2"	—	72 teeth	235
32060547	14x18mm	1/2"	—	72 teeth	260
32060548	14x18mm	3/4"	—	72 teeth	794

Pipe Wrench Insert

2 items · Ø16mm, Ø22mm

Item no.	Interface	Size	Opening
32060464	Ø16mm	14"	2"
32060478	Ø22mm	18"	2–1/2"

Adjustable Wrench Insert

3 items · Ø16mm, Ø22mm

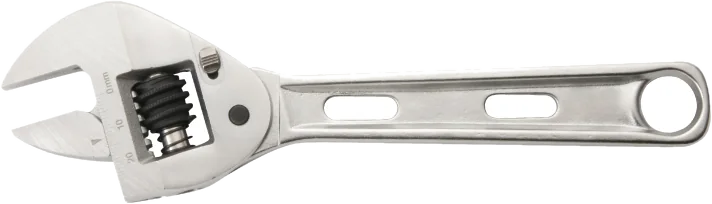

Adjustable wrench insert mounted on a torque wrench

Item no.	Interface	Size	Opening
32060647	Ø16mm	6"	0–28mm
32060648	Ø16mm	10"	0–43mm
32060649	Ø22mm	15"	0–51mm

Converter Insert

4 items · 14x18mm, 9x12mm

Item no.	Interface	Size	Weight (g)	Notes
31220862	9x12mm	Ø16mm	52	Converts spigot interface to female insert size
31220863	14x18mm	Ø16mm	90	Converts spigot interface to female insert size
31220864	9x12mm	Ø22mm	112	Converts spigot interface to female insert size
31220865	14x18mm	Ø22mm	146	Converts spigot interface to female insert size

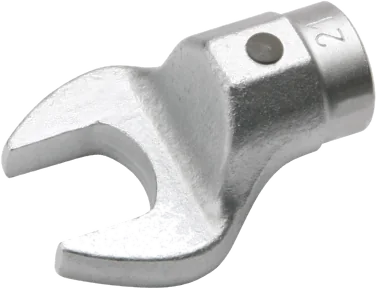

Open Ended Insert

96 items · 14x18mm, 9x12mm, Ø16mm, Ø22mm

Item no.	Interface	Size	Weight (g)
32060136	Ø16mm	7mm	80
32060137	Ø16mm	8mm	80
32060138	Ø16mm	9mm	80
32060139	Ø16mm	10mm	90
32060140	Ø16mm	11mm	90
32060141	Ø16mm	12mm	90
32060142	Ø16mm	13mm	120
32060143	Ø16mm	14mm	120
32060144	Ø16mm	15mm	120
32060145	Ø16mm	16mm	160
32060146	Ø16mm	17mm	160
32060147	Ø16mm	18mm	160
32060148	Ø16mm	19mm	180
32060149	Ø16mm	20mm	180
32060150	Ø16mm	21mm	180
32060151	Ø16mm	22mm	220
32060152	Ø16mm	23mm	220
32060153	Ø16mm	24mm	220
32060154	Ø16mm	25mm	220
32060155	Ø16mm	26mm	220
32060156	Ø16mm	27mm	260
32060157	Ø16mm	28mm	300
32060158	Ø16mm	29mm	300
32060159	Ø16mm	30mm	300
32060160	Ø16mm	32mm	300
32060161	Ø16mm	36mm	300
32060162	Ø22mm	22mm	330
32060163	Ø22mm	24mm	320
32060164	Ø22mm	27mm	380
32060165	Ø22mm	30mm	370
32060166	Ø22mm	32mm	450
32060167	Ø22mm	34mm	430
32060168	Ø22mm	36mm	451
32060169	Ø22mm	41mm	580
32060170	Ø22mm	46mm	530
32060171	Ø16mm	1/4"	90
32060172	Ø16mm	5/16"	80
32060173	Ø16mm	3/8"	90
32060174	Ø16mm	7/16"	90
32060175	Ø16mm	1/2"	90
32060176	Ø16mm	9/16"	120
32060177	Ø16mm	5/8"	160
32060178	Ø16mm	11/16"	160
32060179	Ø16mm	3/4"	180
32060180	Ø16mm	13/16"	90
32060181	Ø16mm	7/8"	220
32060182	Ø16mm	15/16"	220
32060183	Ø16mm	1"	220
32060184	Ø16mm	1–1/16"	260
32060185	Ø16mm	1–1/8"	300
32060186	Ø16mm	1–3/16"	300
32060187	Ø16mm	1–1/4"	300
32060188	Ø16mm	1–5/16"	300
32060189	Ø22mm	1–7/16"	425
32060238	Ø22mm	1–1/2"	429
32060025	9x12mm	7mm	40
32060026	9x12mm	8mm	39
32060027	9x12mm	9mm	38
32060028	9x12mm	10mm	42
32060029	9x12mm	11mm	41
32060030	9x12mm	12mm	43
32060031	9x12mm	13mm	48
32060032	9x12mm	14mm	52
32060033	9x12mm	15mm	51
32060034	9x12mm	16mm	58
32060035	9x12mm	17mm	60
32060036	9x12mm	18mm	71
32060037	9x12mm	19mm	74
32060122	9x12mm	21mm	118
32060123	9x12mm	22mm	119
32060124	9x12mm	24mm	121
32060125	9x12mm	27mm	198
32060126	9x12mm	30mm	200
32060127	9x12mm	32mm	198
32060128	9x12mm	36mm	199
32060052	14x18mm	13mm	128
32060053	14x18mm	14mm	129
32060054	14x18mm	15mm	132
32060055	14x18mm	16mm	140
32060056	14x18mm	17mm	136
32060057	14x18mm	18mm	147
32060058	14x18mm	19mm	147
32060059	14x18mm	21mm	171
32060060	14x18mm	22mm	165
32060129	14x18mm	23mm	165
32060061	14x18mm	24mm	167
32060130	14x18mm	25mm	169
32060131	14x18mm	26mm	169
32060062	14x18mm	27mm	219
32060063	14x18mm	30mm	245
32060064	14x18mm	32mm	246
32060065	14x18mm	34mm	239
32060066	14x18mm	36mm	275
32060067	14x18mm	38mm	265
32060132	14x18mm	40mm	316
32060068	14x18mm	41mm	307

Right Insert

48 items · Ø16mm, Ø22mm

Item no.	Interface	Size	Weight (g)
32060190	Ø16mm	7mm	90
32060191	Ø16mm	8mm	90
32060192	Ø16mm	9mm	90
32060193	Ø16mm	10mm	100
32060194	Ø16mm	11mm	100
32060195	Ø16mm	12mm	100
32060196	Ø16mm	13mm	140
32060197	Ø16mm	14mm	140
32060198	Ø16mm	15mm	140
32060199	Ø16mm	16mm	180
32060200	Ø16mm	17mm	180
32060201	Ø16mm	18mm	180
32060202	Ø16mm	19mm	210
32060203	Ø16mm	20mm	210
32060204	Ø16mm	21mm	210
32060205	Ø16mm	22mm	260
32060206	Ø16mm	23mm	270
32060207	Ø16mm	24mm	260
32060208	Ø16mm	27mm	300
32060209	Ø22mm	22mm	350
32060210	Ø22mm	24mm	330
32060211	Ø22mm	27mm	370
32060212	Ø22mm	30mm	350
32060213	Ø22mm	32mm	420
32060214	Ø22mm	34mm	420
32060215	Ø22mm	36mm	390
32060216	Ø22mm	41mm	560
32060217	Ø22mm	46mm	520
32060218	Ø16mm	1/4"	100
32060219	Ø16mm	5/16"	90
32060220	Ø16mm	3/8"	100
32060221	Ø16mm	7/16"	100
32060222	Ø16mm	1/2"	100
32060223	Ø16mm	9/16"	140
32060224	Ø16mm	5/8"	140
32060225	Ø16mm	11/16"	180
32060226	Ø16mm	3/4"	210
32060227	Ø16mm	13/16"	100
32060228	Ø16mm	7/8"	260
32060229	Ø16mm	15/16"	260
32060230	Ø16mm	1"	300
32060231	Ø16mm	1–1/16"	300
32060232	Ø22mm	1"	400
32060233	Ø22mm	1–1/8"	400
32060234	Ø22mm	1–3/16"	470
32060235	Ø22mm	1–1/4"	450
32060236	Ø22mm	1–5/16"	460
32060237	Ø22mm	1–7/16"	430

Open Ring Insert

59 items · 9x12mm, Ø16mm, Ø22mm

Item no.	Interface	Size	Weight (g)
32060375	Ø16mm	7mm	90
32060376	Ø16mm	8mm	90
32060377	Ø16mm	9mm	90
32060378	Ø16mm	10mm	100
32060379	Ø16mm	11mm	100
32060380	Ø16mm	12mm	100
32060381	Ø16mm	13mm	140
32060382	Ø16mm	14mm	140
32060383	Ø16mm	15mm	140
32060384	Ø16mm	16mm	180
32060385	Ø16mm	17mm	180
32060386	Ø16mm	18mm	180
32060387	Ø16mm	19mm	210
32060388	Ø16mm	20mm	210
32060389	Ø16mm	21mm	210
32060390	Ø16mm	22mm	260
32060391	Ø16mm	23mm	270
32060392	Ø16mm	24mm	260
32060393	Ø16mm	27mm	300
32060395	Ø22mm	22mm	350
32060396	Ø22mm	24mm	330
32060397	Ø22mm	27mm	370
32060398	Ø22mm	30mm	350
32060399	Ø22mm	32mm	420
32060400	Ø22mm	34mm	420
32060401	Ø22mm	36mm	390
32060402	Ø22mm	41mm	560
32060403	Ø22mm	46mm	520
32060404	Ø16mm	1/4"	100
32060405	Ø16mm	5/16"	90
32060406	Ø16mm	3/8"	100
32060407	Ø16mm	7/16"	100
32060408	Ø16mm	1/2"	100
32060409	Ø16mm	9/16"	140
32060410	Ø16mm	5/8"	140
32060411	Ø16mm	11/16"	180
32060412	Ø16mm	3/4"	210
32060413	Ø16mm	13/16"	100
32060414	Ø16mm	7/8"	260
32060415	Ø16mm	15/16"	260
32060416	Ø16mm	1"	300
32060417	Ø16mm	1–1/16"	300
32060418	Ø22mm	1"	400
32060419	Ø22mm	1–1/8"	400
32060420	Ø22mm	1–3/16"	470
32060421	Ø22mm	1–1/4"	550
32060422	Ø22mm	1–5/16"	460
32060423	Ø22mm	1–7/16"	430
32060093	9x12mm	10mm	57
32060094	9x12mm	11mm	55
32060095	9x12mm	12mm	59
32060096	9x12mm	13mm	55
32060097	9x12mm	14mm	60
32060098	9x12mm	16mm	65
32060099	9x12mm	17mm	64
32060100	9x12mm	18mm	74
32060101	9x12mm	19mm	80
32060102	9x12mm	21mm	88
32060103	9x12mm	22mm	92

Hex Open Ended Insert

41 items · 14x18mm, 9x12mm

Item no.	Interface	Size	Weight (g)
32060487	9x12mm	7mm	38
32060488	9x12mm	8mm	37
32060489	9x12mm	9mm	42
32060490	9x12mm	10mm	43
32060491	9x12mm	11mm	42
32060492	9x12mm	12mm	49
32060493	9x12mm	13mm	47
32060494	9x12mm	14mm	52
32060495	9x12mm	15mm	53
32060496	9x12mm	16mm	59
32060497	9x12mm	17mm	58
32060498	9x12mm	18mm	76
32060499	9x12mm	19mm	77
32060500	9x12mm	21mm	137
32060501	9x12mm	22mm	132
32060502	9x12mm	24mm	132
32060503	9x12mm	26mm	197
32060504	9x12mm	27mm	193
32060505	9x12mm	29mm	222
32060506	9x12mm	30mm	219
32060507	9x12mm	32mm	224
32060508	9x12mm	36mm	240
32060509	14x18mm	13mm	133
32060510	14x18mm	14mm	132
32060511	14x18mm	15mm	133
32060512	14x18mm	16mm	145
32060513	14x18mm	17mm	140
32060514	14x18mm	18mm	148
32060515	14x18mm	19mm	147
32060516	14x18mm	21mm	174
32060517	14x18mm	22mm	173
32060518	14x18mm	24mm	172
32060519	14x18mm	26mm	233
32060520	14x18mm	27mm	236
32060521	14x18mm	29mm	259
32060522	14x18mm	30mm	254
32060523	14x18mm	32mm	267
32060524	14x18mm	34mm	247
32060525	14x18mm	36mm	277
32060526	14x18mm	38mm	266
32060527	14x18mm	41mm	321

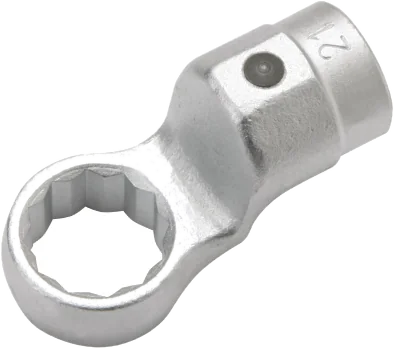

Ring Insert

30 items · 14x18mm, 9x12mm

Ring (box end) insert for interchangeable torque wrench

Item no.	Interface	Size	Weight (g)
32060038	9x12mm	7mm	37
32060039	9x12mm	8mm	40
32060040	9x12mm	10mm	44
32060041	9x12mm	11mm	41
32060042	9x12mm	12mm	49
32060043	9x12mm	13mm	56
32060044	9x12mm	14mm	52
32060045	9x12mm	15mm	52
32060046	9x12mm	16mm	54
32060047	9x12mm	17mm	59
32060048	9x12mm	18mm	56
32060049	9x12mm	19mm	65
32060050	9x12mm	21mm	71
32060051	9x12mm	22mm	74
32060069	14x18mm	13mm	130
32060070	14x18mm	14mm	123
32060071	14x18mm	15mm	128
32060072	14x18mm	16mm	133
32060073	14x18mm	17mm	135
32060074	14x18mm	18mm	134
32060075	14x18mm	19mm	138
32060076	14x18mm	21mm	144
32060077	14x18mm	22mm	145
32060078	14x18mm	24mm	153
32060079	14x18mm	27mm	162
32060080	14x18mm	30mm	182
32060081	14x18mm	32mm	181
32060082	14x18mm	34mm	210
32060083	14x18mm	36mm	203
32060084	14x18mm	41mm	240

Oval Shape Ratchet Head Insert

6 items · 14x18mm, 9x12mm

Item no.	Interface	Size	Teeth	Weight (g)
32060106	9x12mm	1/4"	48 teeth	73
32060023	9x12mm	3/8"	48 teeth	155
32060107	9x12mm	1/2"	48 teeth	170
32060109	14x18mm	3/8"	48 teeth	290
32060024	14x18mm	1/2"	48 teeth	305
32060108	14x18mm	3/4"	48 teeth	345

72-Teeth Ring Ratchet Head Insert

1 items · 9x12mm

Item no.	Interface	Size	Teeth	Weight (g)
32060245	9x12mm	19mm	72 teeth	85

Driver Adapter for 72-Teeth Ring Ratchet

3 items · 19mm

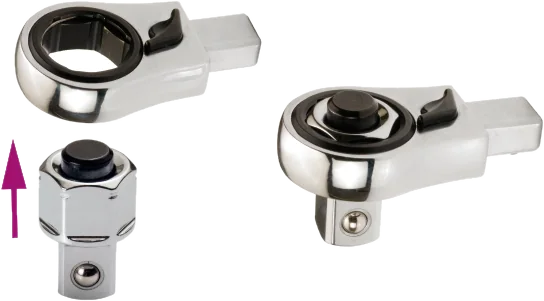

72-teeth ring ratchet insert with driver adapter

Item no.	Interface	Drive	Weight (g)
32060246	19mm	1/4"	37.9
32060247	19mm	3/8"	42
32060248	19mm	1/2"	51

Weld-on Insert

1 items · 9x12mm

Item no.	Interface	Weight (g)
32060542	9x12mm	30

Adapter

2 items · 14x18mm, 9x12mm

Item no.	Interface	Size	Weight (g)	Notes
32060442	14x18mm	Female 9x12mm	120	9x12mm female to 14x18mm insert
32060441	9x12mm	14x18mm	80	14x18mm head to 9x12mm insert

Torx Insert

9 items · 14x18mm, 9x12mm

Item no.	Interface	Size	Weight (g)
32060528	9x12mm	6mm	34
32060529	9x12mm	8mm	40
32060530	9x12mm	10mm	48
32060531	9x12mm	12mm	46
32060532	9x12mm	14mm	55
32060533	14x18mm	14mm	133
32060534	14x18mm	18mm	127
32060535	14x18mm	20mm	143
32060536	14x18mm	24mm	147

Bit Holder Insert

6 items · 14x18mm, 9x12mm

Item no.	Interface	Drive	Weight (g)
32060119	9x12mm	1/4"	52
32060120	9x12mm	5/16"	59
32060121	9x12mm	5/16"	143
32060537	9x12mm	1/4"	51
32060538	9x12mm	5/16"	49
32060539	14x18mm	5/16"	117

Fixed Square Driver Head Insert

9 items · 14x18mm, 9x12mm

Item no.	Interface	Drive	Weight (g)
32060133	9x12mm	1/4"	38
32060134	9x12mm	3/8"	62
32060135	9x12mm	1/2"	72
32060118	14x18mm	1/2"	177
32060549	9x12mm	1/4"	71
32060550	9x12mm	3/8"	76
32060551	9x12mm	1/2"	87
32060522	14x18mm	1/2"	204
32060543	14x18mm	3/4"	403

Need a special head?

Tell us the fastener, size and wrench model — we will match the right insert.

E-mail stand@ms19.hinet.net
