DG-II 11060040

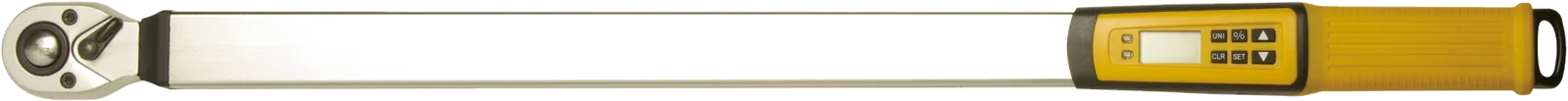

DG®-II Digital Torque Wrench – Square Handle (Yellow), Fixed Head
1/2" · 34–340 Nm
- Model
- DG-II 11060040
- Series
- Square Handle (Yellow) - Fixed Head
- Drive square
- 1/2"
- Torque range
- 34–340 Nm
- Range (lbf·ft)
- 25–250.9
- Range (lbf·in)
- 301–3010
- Length
- 770 mm
- Weight
- 2 kg
- Ratchet teeth
- 45
- Swing angle
- 8°
DG®-II digital functions include display, LED and buzzer alerts and automatic unit conversion; vibration alert and memory are optional. Available functions vary by series — see DG®-II features.
Square Handle (Yellow) - Fixed Head — all 5 models
| Model | Drive | Torque (Nm) | lbf·ft | lbf·in | Length (mm) | Weight (kg) | Teeth | Swing angle |
|---|---|---|---|---|---|---|---|---|
| DG-II 11060038 | 3/8" | 13.5–135 | 9.96–99.6 | 119.5–1195 | 400 | 1.2 | 45 | 8° |
| DG-II 11060041 | 1/2" | 13.5–135 | 9.96–99.6 | 119.5–1195 | 400 | 1.2 | 45 | 8° |
| DG-II 11060039 | 3/8" | 20–200 | 14.8–147 | 178–1780 | 570 | 1.6 | 45 | 8° |
| DG-II 11060042 | 1/2" | 20–200 | 14.8–147 | 178–1780 | 570 | 1.6 | 45 | 8° |
| DG-II 11060040 | 1/2" | 34–340 | 25–250.9 | 301–3010 | 770 | 2 | 45 | 8° |
