DG-II 11060290

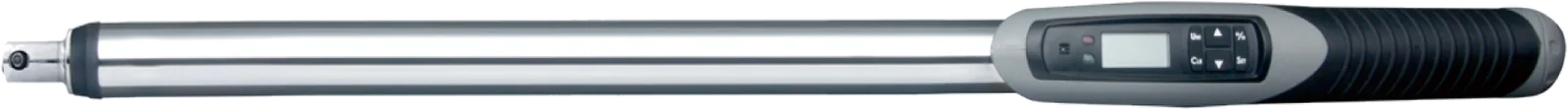

DG®-II Digital Torque Wrench – Round Handle (Gray), Ø16mm Spigot
Ø16mm · 34–340 Nm
- Model
- DG-II 11060290
- Series
- Round Handle (Gray) - Ø16mm Spigot
- Insert / spigot
- Ø16mm
- Torque range
- 34–340 Nm
- Range (lbf·ft)
- 25–250.9
- Range (lbf·in)
- 301–3010
- Length
- 737 mm
- Weight
- 1.4 kg
DG®-II digital functions include display, LED and buzzer alerts and automatic unit conversion; vibration alert and memory are optional. Available functions vary by series — see DG®-II features.
Takes Ø16 mm spigot interchangeable heads — see compatible inserts.
Round Handle (Gray) - Ø16mm Spigot — all 3 models
| Model | Insert | Torque (Nm) | lbf·ft | lbf·in | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| DG-II 11060115 | Ø16mm | 13.5–135 | 9.96–99.6 | 119.5–1195 | 360 | 0.8 |
| DG-II 11060116 | Ø16mm | 20–200 | 14.8–147 | 178–1780 | 540 | 1.1 |
| DG-II 11060290 | Ø16mm | 34–340 | 25–250.9 | 301–3010 | 737 | 1.4 |
