DG-II 11060292

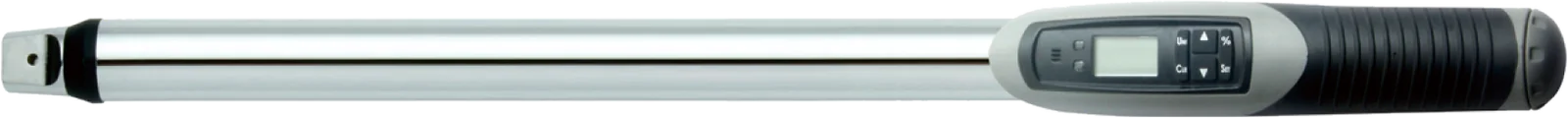

DG®-II Digital Torque Wrench – Round Handle (Gray), Female Interchangeable
14x18mm · 34–340 Nm
- Model
- DG-II 11060292
- Series
- Round Handle (Gray) - Female Interchangeable
- Insert / spigot
- 14x18mm
- Torque range
- 34–340 Nm
- Range (lbf·ft)
- 25–250.9
- Range (lbf·in)
- 301–3010
- Length
- 737 mm
- Weight
- 1.5 kg
DG®-II digital functions include display, LED and buzzer alerts and automatic unit conversion; vibration alert and memory are optional. Available functions vary by series — see DG®-II features.
Takes 14×18 mm insert interchangeable heads — see compatible inserts.
Round Handle (Gray) - Female Interchangeable — all 4 models
| Model | Insert | Torque (Nm) | lbf·ft | lbf·in | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| DG-II 11060117 | 9x12mm | 13.5–135 | 9.96–99.6 | 119.5–1195 | 360 | 0.8 |
| DG-II 11060118 | 9x12mm | 20–200 | 14.8–147 | 178–1780 | 540 | 1.1 |
| DG-II 11060291 | 14x18mm | 20–200 | 14.8–147 | 178–1780 | 540 | 1.15 |
| DG-II 11060292 | 14x18mm | 34–340 | 25–250.9 | 301–3010 | 737 | 1.5 |
